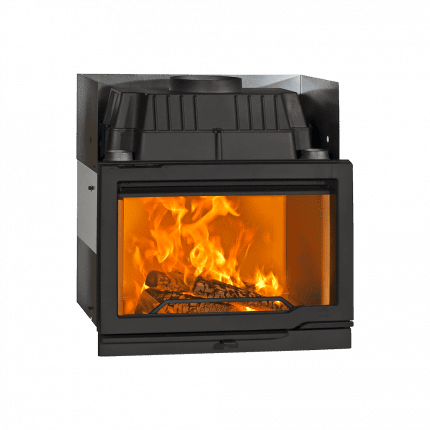

Jotul International – I 570
Technical Details

    Specifications

  • Height
    1257 mm

  • Width
    740 mm

  • Depth
    500 mm

  • Weight

    220 kg

  • Log size
    up to 55 cm

  • Flue outlet

    Ø 200 mm

  • Flue exit options

    Top

  • Nom output

    14.0 kW

  • Efficiency

    77 %

  • Heating capacity

    up to 200 m²

  • Heating capacity cubic

    up to 400 m³

  • CO Emission

    0.09 %

  • Dust Product Emission

    19 mg/Nm³

  • NOx Emission

    62 mg/Nm³

  • OGC Emission

    60 mg/Nm³

  • Ash solution

    Yes

401-203-2876 Shop More Financing

Product Request Quote Form

This field is hidden when viewing the form
Name(Required)
Project Type
Project Timeline
Are you also interested in:
Drop files here or
Max. file size: 2 MB.
    Please take photo from floor to ceiling.
    Drop files here or
    Max. file size: 2 MB.

        Specifications

      • Height
        1257 mm

      • Width
        740 mm

      • Depth
        500 mm

      • Weight

        220 kg

      • Log size
        up to 55 cm

      • Flue outlet

        Ø 200 mm

      • Flue exit options

        Top

      • Nom output

        14.0 kW

      • Efficiency

        77 %

      • Heating capacity

        up to 200 m²

      • Heating capacity cubic

        up to 400 m³

      • CO Emission

        0.09 %

      • Dust Product Emission

        19 mg/Nm³

      • NOx Emission

        62 mg/Nm³

      • OGC Emission

        60 mg/Nm³

      • Ash solution

        Yes

      Additional information

      Brand

      Jotul International
      Product Type

      Insert
      Fuel Type

      Wood
