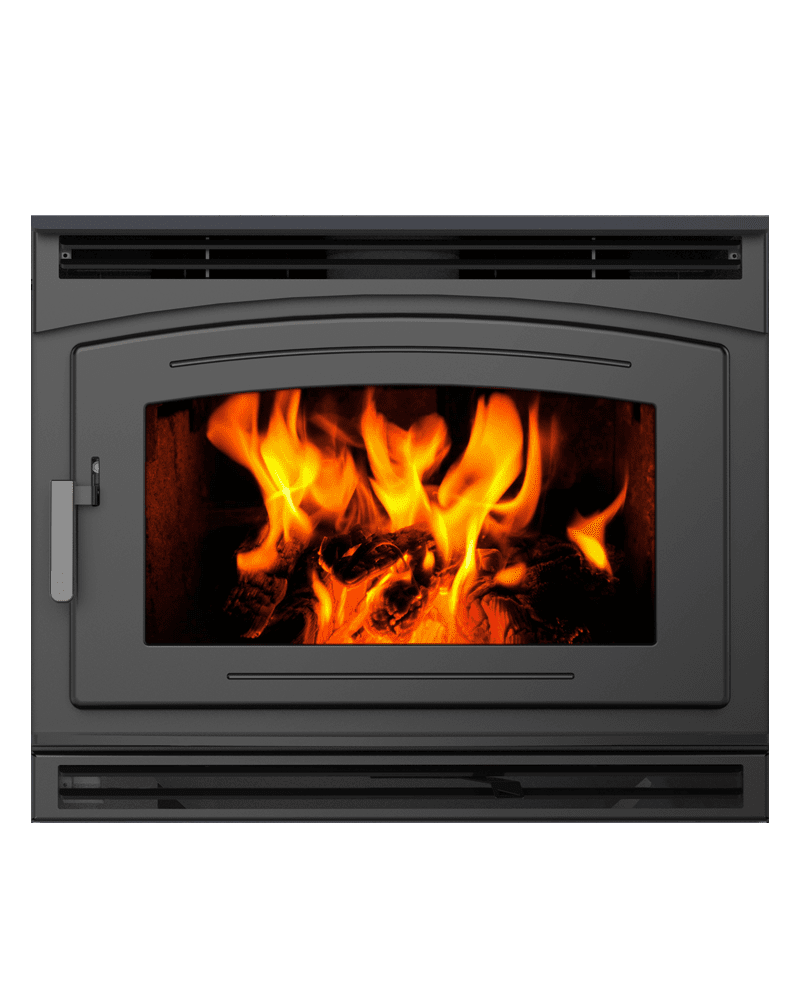

Pacific Energy – FP30 Arch LE

The FP30 Arch LE meets the need for high-capacity heat in a wood burning fireplace. Boasting a large curved cast iron framed door, this fireplace is packed with standard features for outstanding performance.

Technical Details

Features

Technical Data

99,000 BTU Cord Wood
65,650 BTU EPA Test Fuel

Efficiency (LHV) 76.8%
Emissions 1.7 gm/hr.
Log Size (recommended) 16″
Log Size (max) 20″
Firebox Size 3.0 cu.ft.
Glass Viewing Area 246 sq.in.
Weight 626 lb.

Standard Features

EPA 2020 Certified
Reliable, Durable Catalytic-Free Technology
Extended Burn Technology (EBT)
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
304 Stainless Steel baffle, insulation cover, rails and flame shield
High-tech multi-port combustion air injection system
Boost air for easy lighting
Single-Lever Air Control
Oversize glass viewing window
Cast iron door
Cast iron ash lip (Contemporary)
Integrated heat exchanger
2×80 cfm temperature actuated blowers
Inside and outside combustion air capable
Mobile Home Approved
North-South fuel loading

Design Options

Craftsman Surround

Performance Options

Heat distribution system
