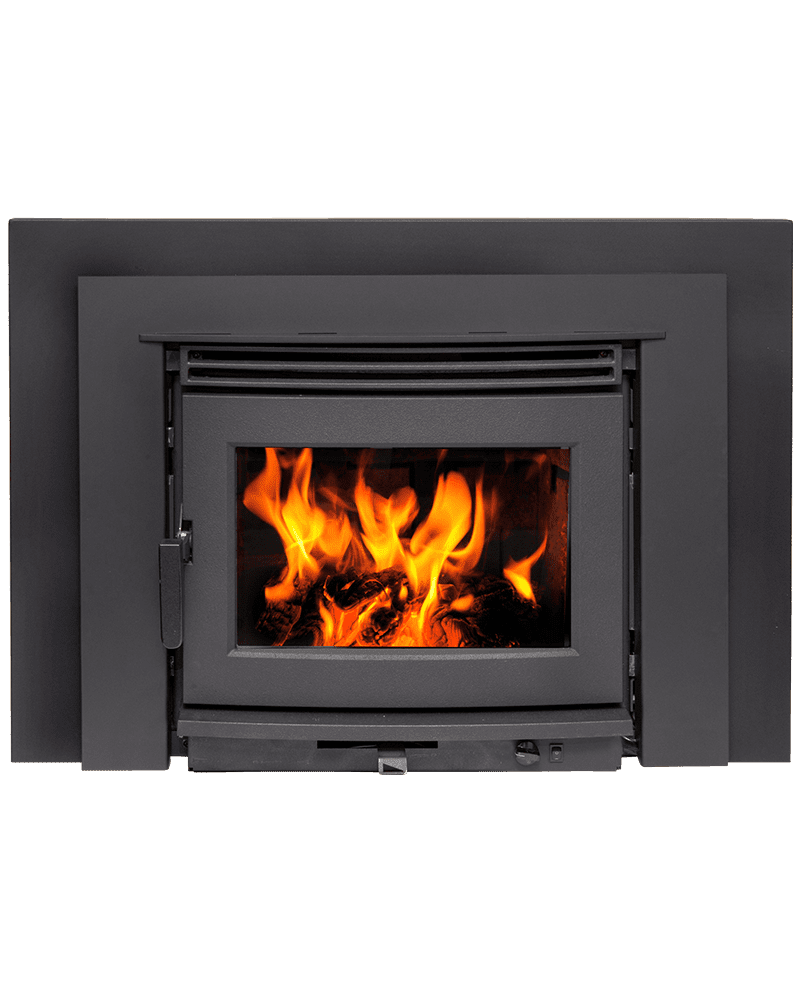

Make your smaller existing masonry fireplace a significant source of wood heat with the contemporary style of the Neo 1.6 Insert LE.
Technical Details
Features
Technical Data
56,000 BTU Cord Wood
23,200 BTU EPA Test Fuel
Efficiency (HHV) 72%
Emissions 1.9 gm/hr
Log Size (recommended) 16″
Log Size (max) 17 “
Firebox Size 1.6 cu.ft.
Glass Viewing Area 147 sq.in.
Weight 285 lbs.
Standard Features
EPA 2020 Certified
Reliable, Durable Catalytic-Free Technology
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
304 Stainless Steel Baffle, insulation cover, rails and flame shield
High-tech multi-port combustion air injection system
Single-Lever Air Control
Rich metallic black finish
High capacity baffle system
Removable Cast-Iron Flue Collar
Integrated Heat Exchanger
Inside and outside combustion air capable
East-West fuel loading
Design Options
Contemporary Surround in Metallic Black or Stainless Steel (36” x 26”)
Oversize Surround (46” x 30”)
Performance Options
2×80 cfm temperature actuated variable speed blowers
Product Request Quote Form
Features
Technical Data
56,000 BTU Cord Wood
23,200 BTU EPA Test Fuel
Efficiency (HHV) 72%
Emissions 1.9 gm/hr
Log Size (recommended) 16″
Log Size (max) 17 “
Firebox Size 1.6 cu.ft.
Glass Viewing Area 147 sq.in.
Weight 285 lbs.
Standard Features
EPA 2020 Certified
Reliable, Durable Catalytic-Free Technology
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
304 Stainless Steel Baffle, insulation cover, rails and flame shield
High-tech multi-port combustion air injection system
Single-Lever Air Control
Rich metallic black finish
High capacity baffle system
Removable Cast-Iron Flue Collar
Integrated Heat Exchanger
Inside and outside combustion air capable
East-West fuel loading
Design Options
Contemporary Surround in Metallic Black or Stainless Steel (36” x 26”)
Oversize Surround (46” x 30”)
Performance Options
2×80 cfm temperature actuated variable speed blowers
Additional information
| Brand | Pacific Energy |
|---|---|
| Product Type | Insert |
| Fuel Type | Wood |
