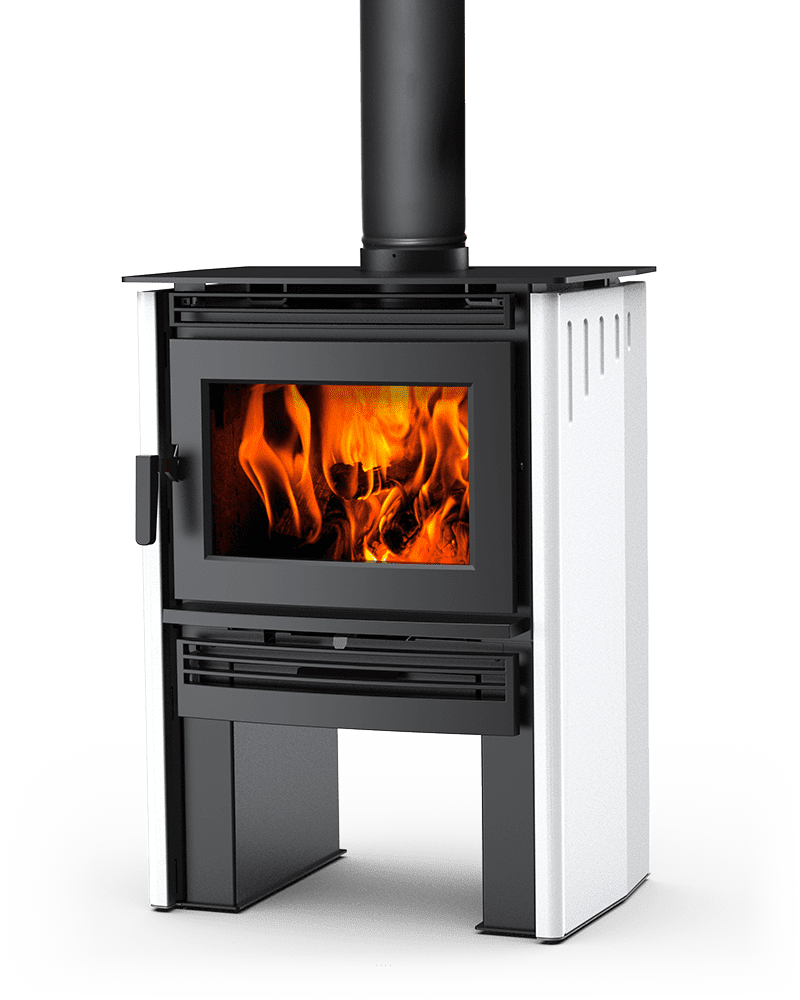

The Neo 1.6 LE makes a bold statement with it’s tall profile for easy loading, line-of-sight view of the flame, and modern design. Like its larger cousin the Neo 2.5, the Neo 1.6 LE is a true heating machine with Pacific Energy’s solid steel construction, floating firebox with stainless steel baffle and high-efficiency finned heat exchanger. Choose the color that is right for your home with side panels available in a variety of porcelain enamel colors.
Technical Details
Features
Technical Data
56,000 BTU Cord Wood
23,200 BTU EPA Test Fuel
Efficiency (HHV) 72%
Emissions 1.9 gm/hr.
Log Size (recommended) 16″
Log Size (max) 17″
Firebox Size 1.6 cu.ft.
Glass Viewing Area 173 sq.in.
Weight 350 lb
Chimney Size 6”
Standard Features
EPA 2020 Certified
Reliable, Durable, Catalytic-free Technology
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
High-tech multi-port combustion air injection system
304 Stainless Steel Baffle, insulation cover, rails and flame shield
Rich Metallic Black finish
Boost air for easy lighting
Integrated heat exchanger
Easy to use ash disposal system
Leveling Legs
Heavy plate-steel top
Inside and outside combustion air capable
Mobile Home Approved
East-West fuel loading
Design Options
Side panels in painted Metallic Black Steel, Stainless Steel, or a choice of four lustrous Porcelain Enamel colors
Performance Options
Temperature-Actuated Variable-Speed Blower
Product Request Quote Form
Features
Technical Data
56,000 BTU Cord Wood
23,200 BTU EPA Test Fuel
Efficiency (HHV) 72%
Emissions 1.9 gm/hr.
Log Size (recommended) 16″
Log Size (max) 17″
Firebox Size 1.6 cu.ft.
Glass Viewing Area 173 sq.in.
Weight 350 lb
Chimney Size 6”
Standard Features
EPA 2020 Certified
Reliable, Durable, Catalytic-free Technology
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
High-tech multi-port combustion air injection system
304 Stainless Steel Baffle, insulation cover, rails and flame shield
Rich Metallic Black finish
Boost air for easy lighting
Integrated heat exchanger
Easy to use ash disposal system
Leveling Legs
Heavy plate-steel top
Inside and outside combustion air capable
Mobile Home Approved
East-West fuel loading
Design Options
Side panels in painted Metallic Black Steel, Stainless Steel, or a choice of four lustrous Porcelain Enamel colors
Performance Options
Temperature-Actuated Variable-Speed Blower
Additional information
| Brand | Pacific Energy |
|---|---|
| Product Type | Stove |
| Fuel Type | Wood |
| Design Style | Freestanding, Legs |
