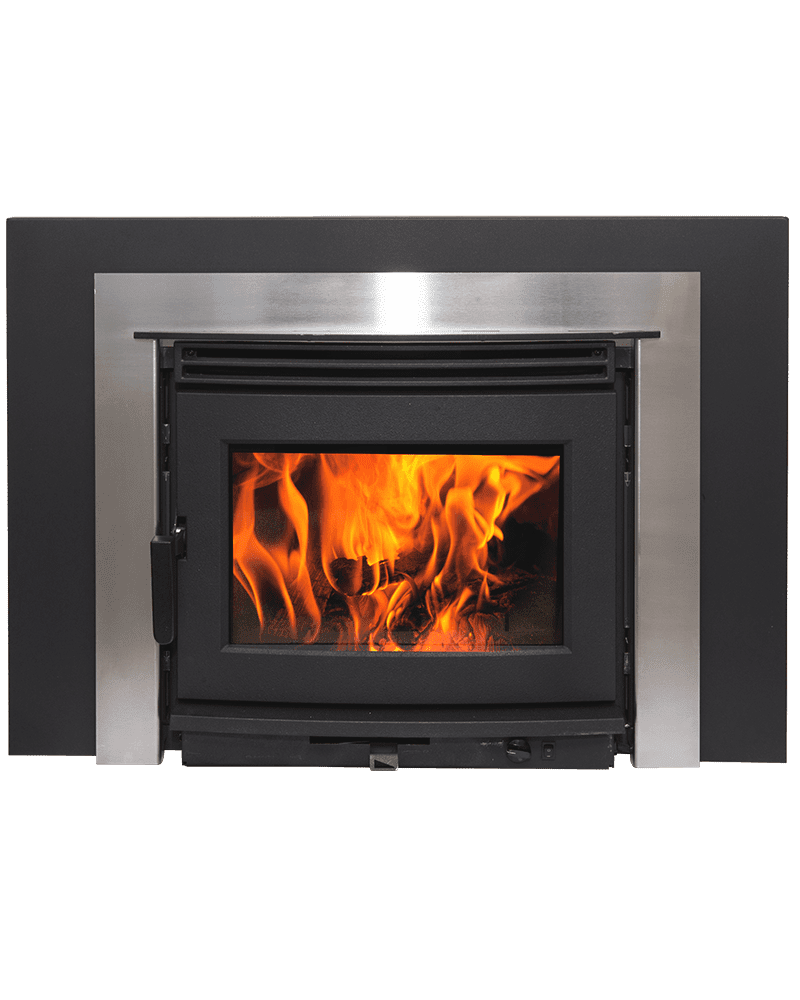

Transform an energy-wasting fireplace into a cost-saving source of heat without sacrificing the comfort and appeal of a wood fire. The Neo 2.5 Insert LE accommodates larger existing masonry fireplace and features Pacific Energy’s trusted industry leading construction, boost air for easy lighting and one-lever air control for simple operation and burning efficiency. With all the features of the Neo 1.6 Insert LE in a larger, higher-output format, the Neo 2.5 Insert LE delivers exceptional performance and durability.
Technical Details
Features
Technical Data
85,000 BTU Cord Wood
60,000 BTU EPA Test Fuel
Efficiency (HHV) 72%
Emissions 2.0 gm/hr.
Log Size (recommended) 16″
Log Size (max) 18″
Firebox Size 2.5 cu.ft.
Glass Viewing Area 165 sq.in.
Weight 420 lbs.
Standard Features
EPA 2020 Certified
Reliable, Durable Catalytic-Free Technology
Extended Burn Technology (EBT)
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
High-tech multi-port combustion air injection system
Single-Lever Air Control
Rich metallic black finish
High capacity baffle system
Removable Cast-Iron Flue Collar
Integrated Heat Exchanger
Inside and outside combustion air capable
East-West fuel loading
Design Options
Contemporary Surround in Metallic Black or Stainless Steel (36” x 26”)
Oversize Surround (46” x 30”)
Performance Options
2×80 cfm temperature actuated variable speed blowers
Product Request Quote Form
Features
Technical Data
85,000 BTU Cord Wood
60,000 BTU EPA Test Fuel
Efficiency (HHV) 72%
Emissions 2.0 gm/hr.
Log Size (recommended) 16″
Log Size (max) 18″
Firebox Size 2.5 cu.ft.
Glass Viewing Area 165 sq.in.
Weight 420 lbs.
Standard Features
EPA 2020 Certified
Reliable, Durable Catalytic-Free Technology
Extended Burn Technology (EBT)
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
High-tech multi-port combustion air injection system
Single-Lever Air Control
Rich metallic black finish
High capacity baffle system
Removable Cast-Iron Flue Collar
Integrated Heat Exchanger
Inside and outside combustion air capable
East-West fuel loading
Design Options
Contemporary Surround in Metallic Black or Stainless Steel (36” x 26”)
Oversize Surround (46” x 30”)
Performance Options
2×80 cfm temperature actuated variable speed blowers
Additional information
| Brand | Pacific Energy |
|---|---|
| Product Type | Insert |
| Fuel Type | Wood |
