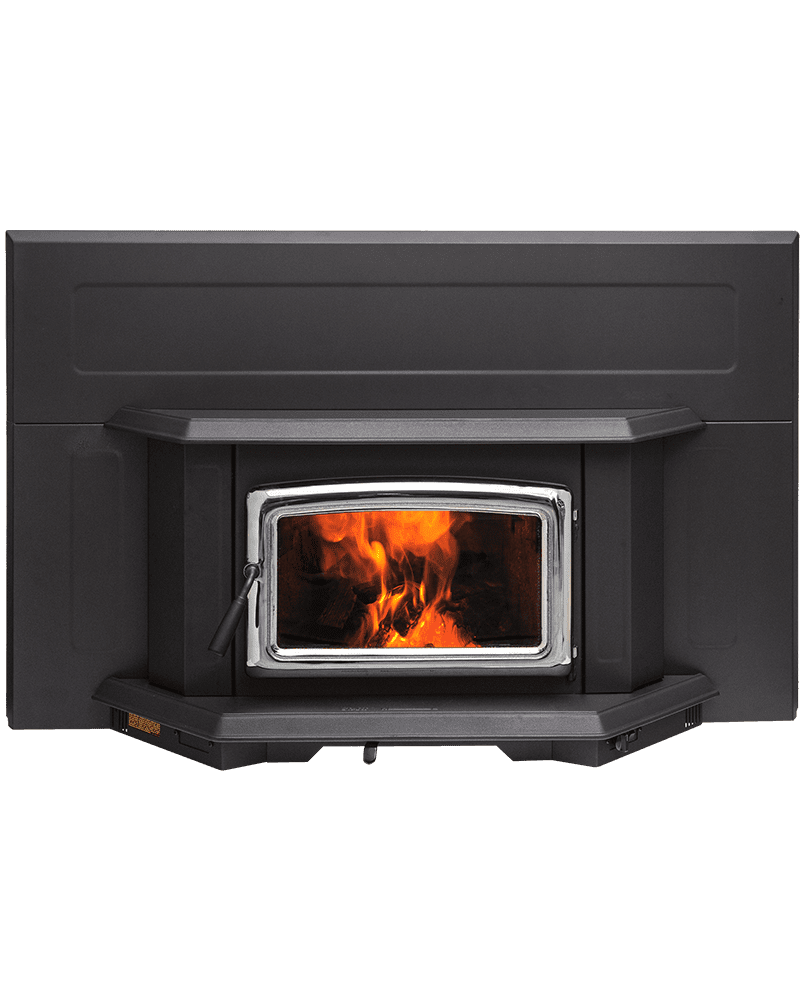

For rooms with larger masonry fireplaces, the Summit Insert LE is the solution. With Extended Burn Technology, the Summit insert LE provides ten full hours of controlled burning, for a full night of wood-heated comfort. An efficient, clean-burning heat source, the Summit insert LE is easy to light and use, with a large window that provides a clear view of the flame.
Technical Details
Features
Technical Data
99,000 BTU Cord Wood
41,275 BTU EPA Test Fuel
Efficiency (HHV) 74%
Emissions 1.8 gm/hr.
Log Size (recommended) 16”
Log Size (max) 20“
Firebox Size 3.0 cu.ft.
Glass Viewing Area 153 sq.in.
Weight 465 lb.
Standard Features
EPA 2020 Certified
Reliable, Durable Catalytic-Free Technology
High capacity baffle system
Extended Burn Technology (EBT)
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
304 Stainless Steel Baffle, insulation cover, rails and flame shield
Boost air for easy lighting
Single-Lever Air Control
Removable flue collar
Rich Metallic black finish
Two temperature-actuated variable-speed blowers
Cast iron warming shelf and ash lip
Inside and outside combustion air capable
Easy and safe front to back fuel loading
North-South fuel loading
Design Options
Arched door: choice of three finishes
Embossed Surround, Standard Size (50 3/8” x 32 1/4”)
Embossed Surround, Oversize (54 3/8” x 34 1/4”)
Product Request Quote Form
Features
Technical Data
99,000 BTU Cord Wood
41,275 BTU EPA Test Fuel
Efficiency (HHV) 74%
Emissions 1.8 gm/hr.
Log Size (recommended) 16”
Log Size (max) 20“
Firebox Size 3.0 cu.ft.
Glass Viewing Area 153 sq.in.
Weight 465 lb.
Standard Features
EPA 2020 Certified
Reliable, Durable Catalytic-Free Technology
High capacity baffle system
Extended Burn Technology (EBT)
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
304 Stainless Steel Baffle, insulation cover, rails and flame shield
Boost air for easy lighting
Single-Lever Air Control
Removable flue collar
Rich Metallic black finish
Two temperature-actuated variable-speed blowers
Cast iron warming shelf and ash lip
Inside and outside combustion air capable
Easy and safe front to back fuel loading
North-South fuel loading
Design Options
Arched door: choice of three finishes
Embossed Surround, Standard Size (50 3/8” x 32 1/4”)
Embossed Surround, Oversize (54 3/8” x 34 1/4”)
Additional information
| Brand | Pacific Energy |
|---|---|
| Product Type | Insert |
| Fuel Type | Wood |
