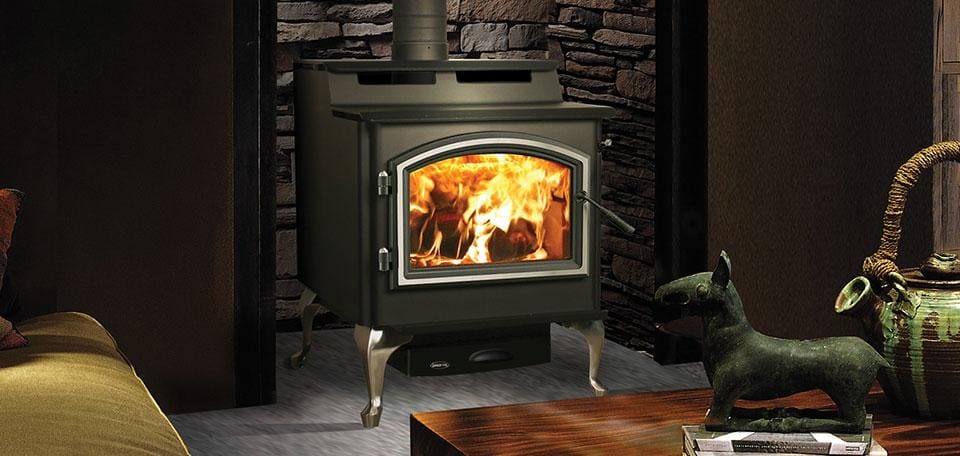

Quadra-Fire Step Top Series Wood Stove
The Step Top is a wood-burning powerhouse. It’s big on heating performance, and even bigger on efficiency. Automatic Combustion Control (ACC) burn technology offers precision heating control, and easily blends with the Quadra-Fire Four-Point Burn System.
- Low emission levels of 1.8 grams per hour, certified by the EPA
- 3.0 cu ft firebox capacity / recommended 22″ log length
- Up to 15 hours of burn time from each load of fuel†
Technical Details
4300 Step Top Wood Stove – C EPA 2020
| Fuel Type: | Seasoned Cord Wood |
| Peak BTU/hr Output: | 61,700 |
| Heating Capacity: | 1,100 – 3,000 sq ft |
| Maximum Burn Time: | 12 hrs |
| Firebox Capacity: | 2.3 cu ft |
| Recommended Log Length: | 18″ |
| Viewing Area: | 165 sq in |
| Efficiency: | LHV 80%, HHV 74% |
| Emissions: | 1.6 grams/hour |
5700 Step Top Wood Stove – ACC
| Width: | 27″ |
| Height: | 37-11/16″ |
| Depth: | 32-3/8″ |
| Peak BTU/hr Output: | 72,100 |
| Heating Capacity: | 1,400 – 3,700 sq ft |
| Maximum Burn Time: | 15 hrs |
| Firebox Capacity: | 3.0 cu ft |
| Recommended Log Length: | 22″ |
| Viewing Area: | 187 sq in |
| Efficiency: | LHV 80%, HHV 74% |
| Emissions: | 1.8 grams/hour |
Product Request Quote Form
4300 Step Top Wood Stove - C EPA 2020
| Fuel Type: | Seasoned Cord Wood |
| Peak BTU/hr Output: | 61,700 |
| Heating Capacity: | 1,100 - 3,000 sq ft |
| Maximum Burn Time: | 12 hrs |
| Firebox Capacity: | 2.3 cu ft |
| Recommended Log Length: | 18" |
| Viewing Area: | 165 sq in |
| Efficiency: | LHV 80%, HHV 74% |
| Emissions: | 1.6 grams/hour |
5700 Step Top Wood Stove - ACC
| Width: | 27" |
| Height: | 37-11/16" |
| Depth: | 32-3/8" |
| Peak BTU/hr Output: | 72,100 |
| Heating Capacity: | 1,400 - 3,700 sq ft |
| Maximum Burn Time: | 15 hrs |
| Firebox Capacity: | 3.0 cu ft |
| Recommended Log Length: | 22" |
| Viewing Area: | 187 sq in |
| Efficiency: | LHV 80%, HHV 74% |
| Emissions: | 1.8 grams/hour |
Additional information
| Brand | Quadra-Fire |
|---|---|
| Fuel Type | Wood |
| Product Type | Stove |
