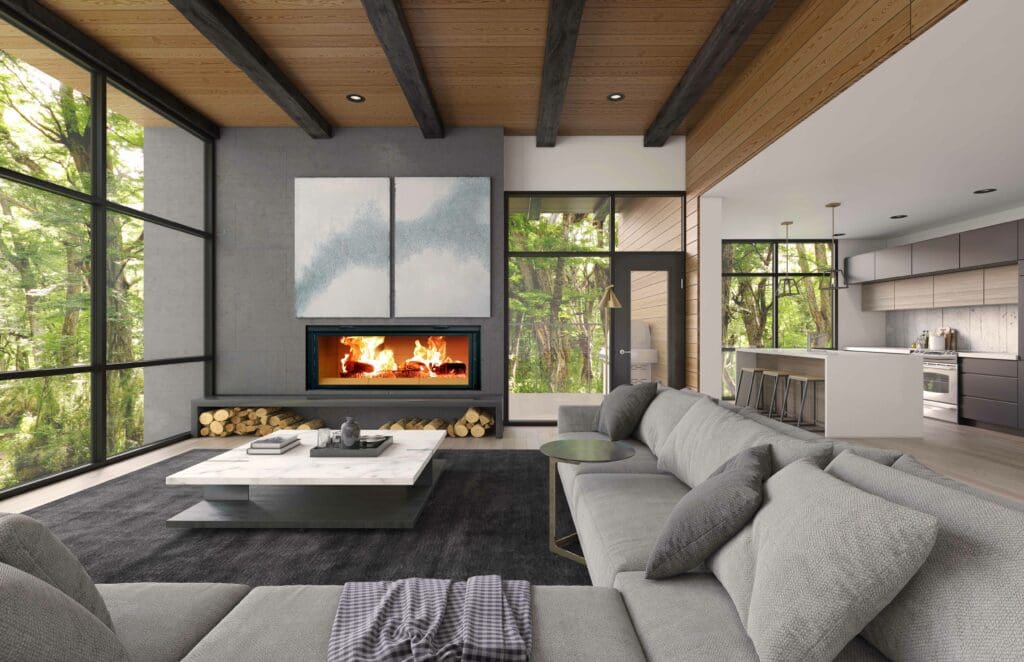

ICC Linear 50 NEW V2-1024x662-1

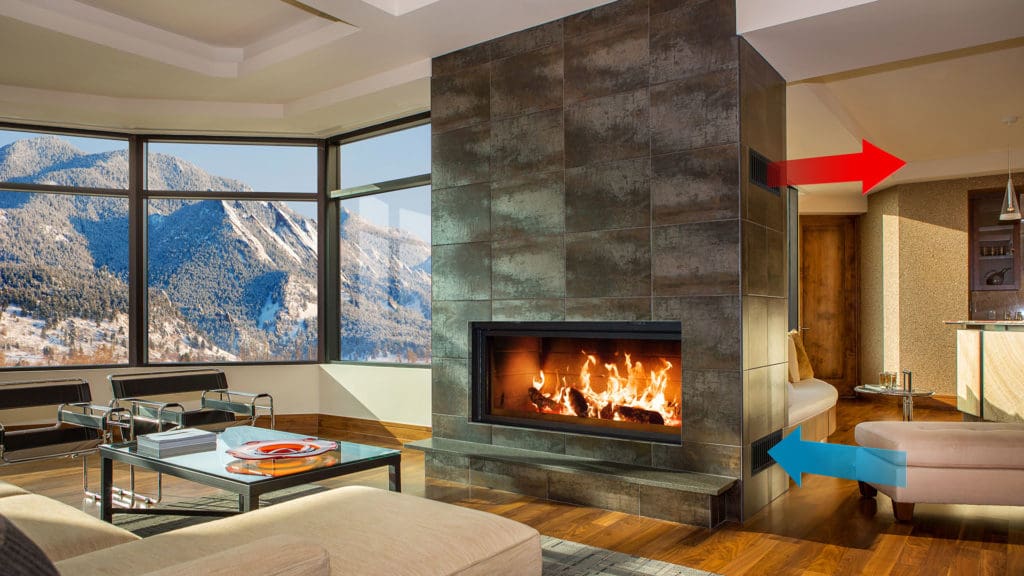

Linear-50 01 1920x1080-1024x576-1

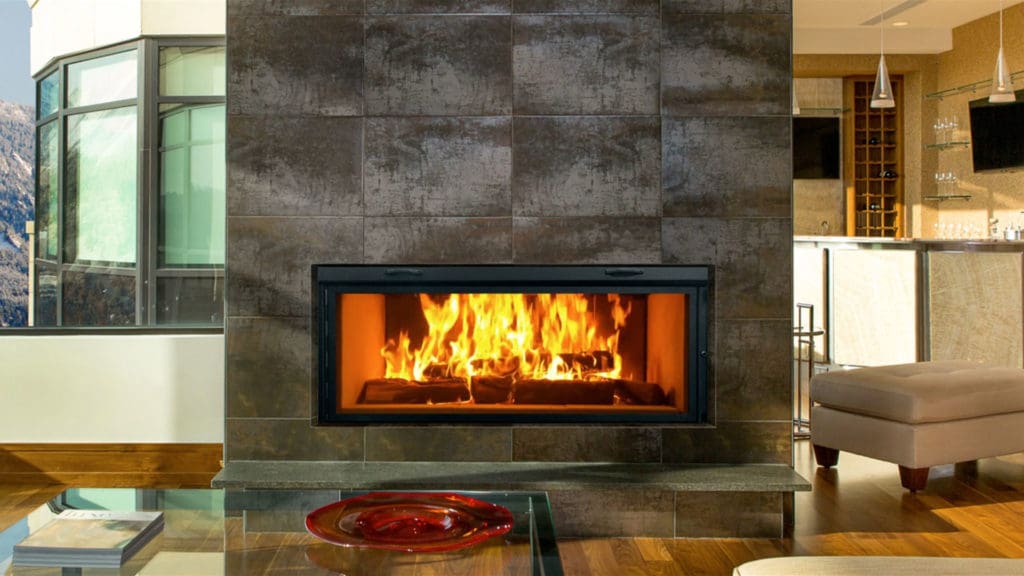

Linear-50 02 1920x1080-1024x576-1

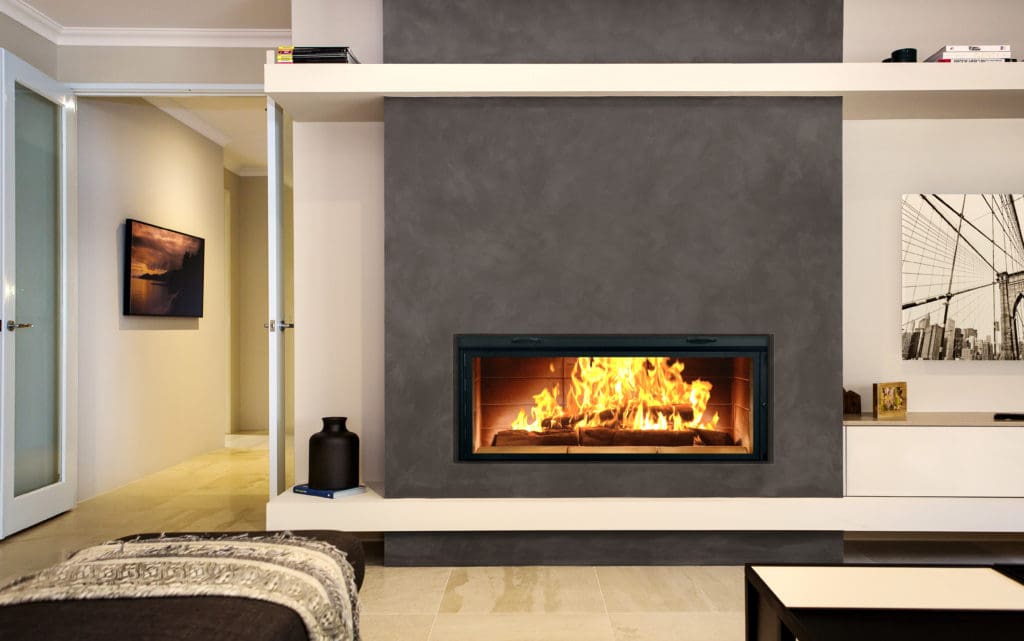

Linear Modern-background-1024x641-1

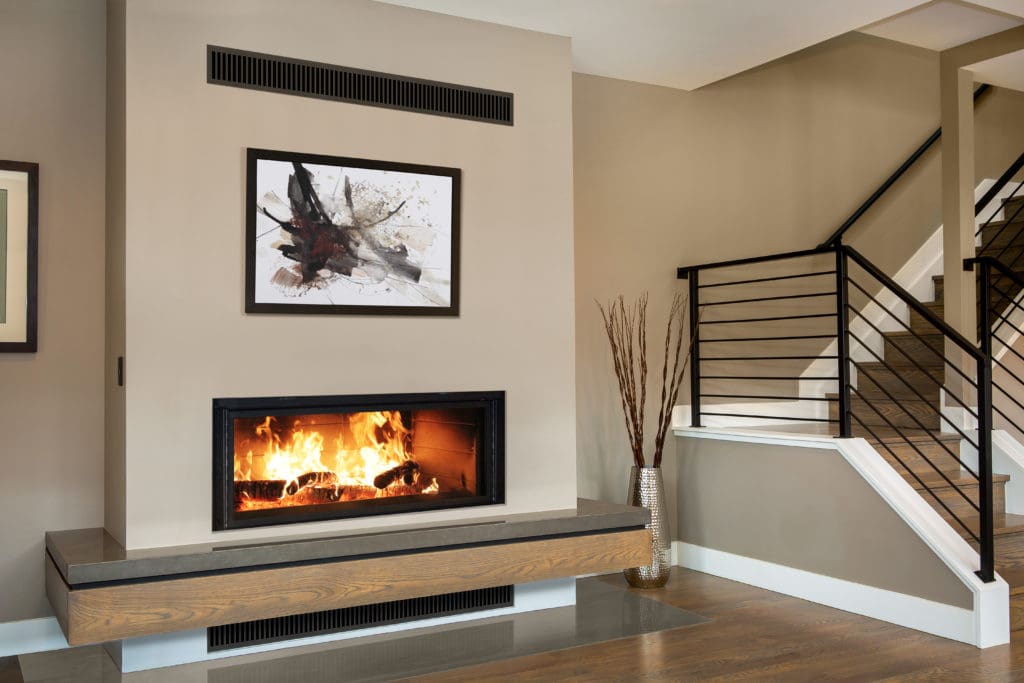

RL50 Fireplace Long Grills-1024x683-1

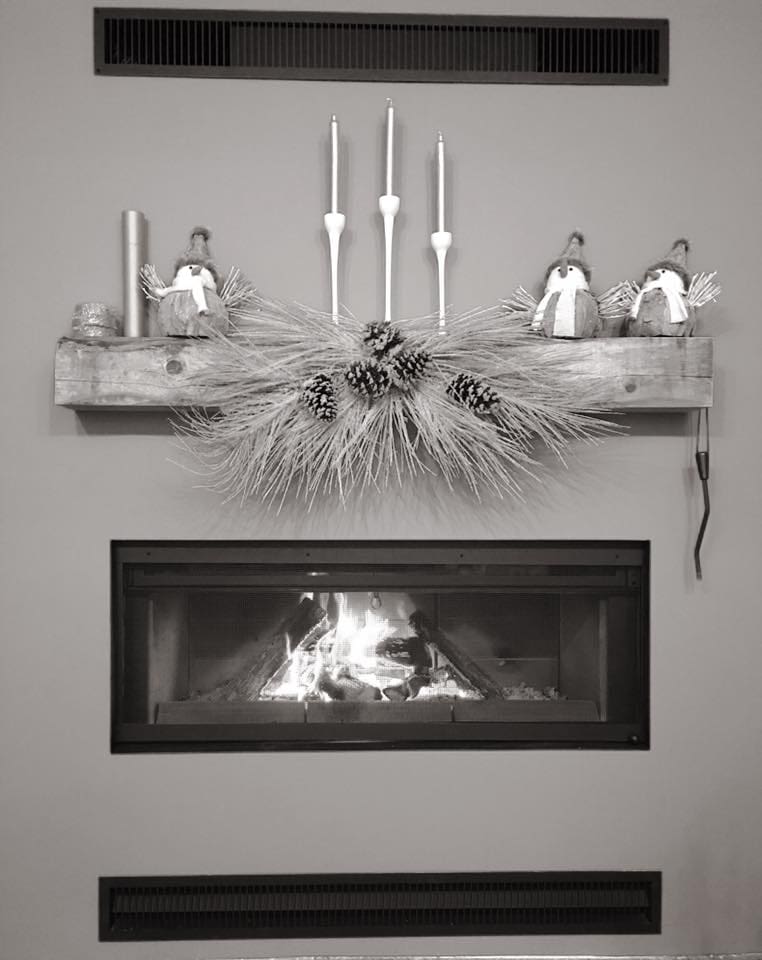

HubertsFireplace-RL50 20171209

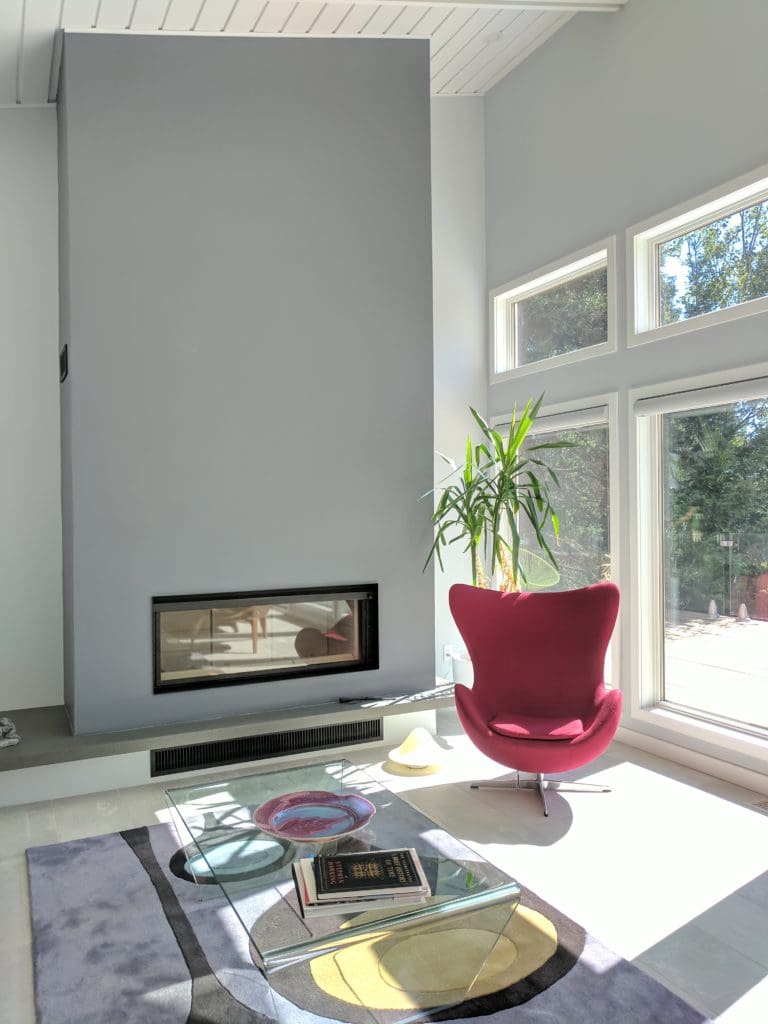

IMG 20170908 125426-768x1024-1
ICC Linear 50 NEW V2-1024x662-1
Renaissance Fireplace – Linear 50

At Renaissance Fireplaces, we strive to introduce people to wood burning in new and exciting ways and to preserve the nostalgia of a crackling fire that consumers expect. The wall-to-wall fire of the RL50 is an experience unlike any other.

Technical Details
GENERAL SPECIFICATIONS Outside Dimensions 70 3/8″W x 66 3/8″H x 28 3/4″D Shipping weight 1,131 lbs Shipping Crate Size 70 1/4″W x 69 1/2″H x 32 1/2″D Door Opening Size 50 7/16″W x 19 7/8″H Glass viewing size 45 7/8″W x 15 3/8″H Firebox Size 44 1/2″W x 14″D Emissions The Linear 50 can be sold in Canada and the USA since it is not regulated as per the rule definition of “fireplace” under Subpart AAA of the 2015 EPA Standards of Performance for New Residential Wood Heaters Vol. 80, No. 50. Chimney Size 10″ RIS Minimum Chimney Height 12’ (more with elbows) Touch-up Paint Stove Bright Metallic Black Maximum Fuel Load 4-5 medium logs Maximum Log Length 24” maximum

It is possible to overfire the Renaissance Linear 50 if the maximum fuel load or log length is exceeded.

Gas Log Provision YES

These fireplaces have an access panel to accept an aftermarket gas log assembly. You may not install a gas lighter in any Renaissance fireplace because the high firebox temperatures will burn out the log lighter very quickly.

HRS (Heat Recovery System) Included with fireplace,
Two 10″ dia. outlet ducts – 5′ length HRS Grills Two 13 1/2″ x 8 3/8″ inlet wall grills (included)

Two 13 1/2″ x 6″ outlet wall grills (included) Mobile Home Approved NO Outside Air 4″, meets R2000 (FO-INT)

All Renaissance FireplacesTM come equipped to accept a 4″ outside air duct, if there us more than 20′ of lenght a 5″ duct can also be used.

HRS extensions EO-DUCT = 5’ outlet extension
401-203-2876 Shop More Financing

Product Request Quote Form

This field is hidden when viewing the form
Name(Required)
Project Type
Project Timeline
Are you also interested in:
Drop files here or
Max. file size: 2 MB.
    Please take photo from floor to ceiling.
    Drop files here or
    Max. file size: 2 MB.

      GENERAL SPECIFICATIONS Outside Dimensions 70 3/8″W x 66 3/8″H x 28 3/4″D Shipping weight 1,131 lbs Shipping Crate Size 70 1/4″W x 69 1/2″H x 32 1/2″D Door Opening Size 50 7/16″W x 19 7/8″H Glass viewing size 45 7/8″W x 15 3/8″H Firebox Size 44 1/2″W x 14″D Emissions The Linear 50 can be sold in Canada and the USA since it is not regulated as per the rule definition of “fireplace” under Subpart AAA of the 2015 EPA Standards of Performance for New Residential Wood Heaters Vol. 80, No. 50. Chimney Size 10″ RIS Minimum Chimney Height 12’ (more with elbows) Touch-up Paint Stove Bright Metallic Black Maximum Fuel Load 4-5 medium logs Maximum Log Length 24” maximum

      It is possible to overfire the Renaissance Linear 50 if the maximum fuel load or log length is exceeded.

      Gas Log Provision YES

      These fireplaces have an access panel to accept an aftermarket gas log assembly. You may not install a gas lighter in any Renaissance fireplace because the high firebox temperatures will burn out the log lighter very quickly.

      HRS (Heat Recovery System) Included with fireplace,
      Two 10″ dia. outlet ducts – 5′ length HRS Grills Two 13 1/2″ x 8 3/8″ inlet wall grills (included)

      Two 13 1/2″ x 6″ outlet wall grills (included) Mobile Home Approved NO Outside Air 4″, meets R2000 (FO-INT)

      All Renaissance FireplacesTM come equipped to accept a 4″ outside air duct, if there us more than 20′ of lenght a 5″ duct can also be used.

      HRS extensions EO-DUCT = 5’ outlet extension

      Additional information

      Brand

      Renaissance Fireplace
      Product Type

      Fireplace
      Fuel Type

      Wood
      Design Style

      Contemporary
